Description
General Specs
| Kanali | 5 – 3 |
| POWER SUPPLY | |
| Power supply voltage / fuse: | 22 ÷ 33 VDC / 2 x 15 A |
| ldling current (power ON/OFF): | 1 A / 0.04 mA |
| Consumption@ 1Ω, 14.4 VDC (Max Musical Power): | 15 A |
| Remote In: | 7 ÷ 33 VDC – 1 mA |
| ART: | Automatic Remote Turn-OniOff with Speaker-ln |
| AMPLIFIER STAGE | |
| Distorsion – TliD (100Hz @ 4Ω): | 0,02% |
| Bandwidth: | 10 ÷ 50 kHz |
| Bandwidth: | 10 ÷ 500 Hz |
| S/N Ratlo (A welghted @ 1 V): | 100 dB |
| Damping factor (100Hz @ 4Ω) FRONT/REAR: | 100 |
| Damping factor (100Hz @ 4Ω) SUB: | 250 |
| Pre-ln sensitivity: | 0.2 ÷ 5 VRMS |
| Speaker-ln sensitivity: | 0.8 ÷ 20 VRMS |
| Load impedance (MIN)@5Ch:@3Ch: | 2 Ω 4 Ω + 4 Ω + 2 Ω |

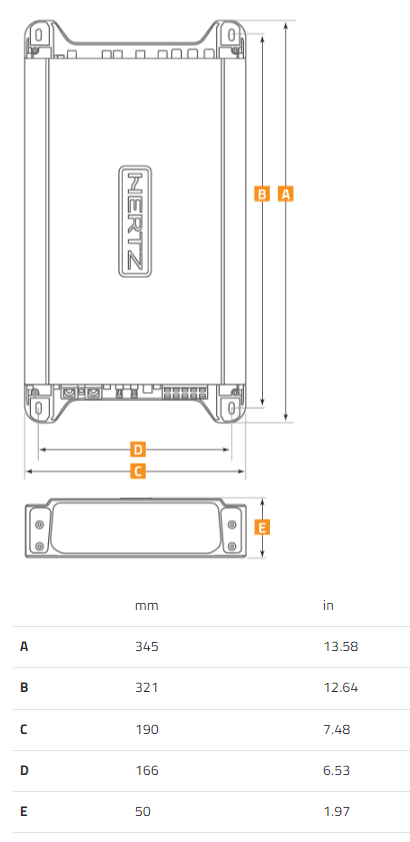

| Max size (mm/in): | 345 x 190 x 50 13,58 x 7,48 x 1,97 |
| Weight (kg/lb): | 3 (6,61) |
| Adjustable Crossovers | yes |
Output Power
| OUTPUT POWER (RMS) @ 28.8 VDC, THD 1%IZLAZNA SNAGA (RMS) @ 28,8 VDC, THD 1% | |
| 5Ch | 55 W x 4+160 W x 1 (4Ω) |
| 5Ch | 90 W x 4+ 280 W x 1 (2 Ω) |
| 3Ch | 180 W x 2 (4 Ω) +160 W x 1 (4 Ω) |
| 3Ch | 180 W x 2 (4 Ω) + 280 W x 1 (2 Ω) |
| OUTPUT POWER (RMS) @ 28.8 VDC, THD 10% | |
| 5Ch | 55 W x 4+160 W x 1 (4Ω) |
| 5Ch | 90 W x 4+ 280 W x 1 (2 Ω) |
| 3Ch | 180 W x 2 (4 Ω) +160 W x 1 (4 Ω) |
| 3Ch | 180 W x 2 (4 Ω) + 280 W x 1 (2 Ω) |
| CEA 2006-A RATINGS | |
| RMS Power (4 Ω, ≤ 1 % THD+N,14.4 V): | 50 W x 4 kanala + 150 W x 1 kanal |
| S/N Ratio (ref. 1 W output) | (50 W kanal) 83 dBA (150 W kanal) 85 dBA |
| Total Power | 1500 W |
INPUTS / FILTERS
| lnputs: | PRE IN l SPEAKER IN |
| FRONT Ch. filters FULL: | Yes |
| Hi-Pass: | 50 ÷ 5 kHz @ 12 dB/Oct |
| REAR Ch. filters FULL:
|
Yes |
| Hi-Pass: | 50 ÷ 5 kHz @ 12 dB/Oct |
| Band-Pass: | 50 ÷ 500 Hz (Hi) @ 12 dB/Oct 50 ÷ 5 kHz (Lo) @ 12 dB/Oct |
| SUB Ch. filter LO-PASS: | 50 ÷ 500 Hz (Hi) @ 24 dB/Oct |
| SUBSONIC (on/off): | 25 Hz @ 24 dB / Oct |
| BOOST 50 Hz (adjust): | (0÷12) dB |
| Remote Volume Control: | (-50 ÷ 6) dB |
