Description
Technical Specs
| Component | CLASSIC COAX |
| Size mm (in.) | 165 (6.5) |
| Power Handling – Continuous W | 50 |
| Power Handling – Peak W | 100 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 84.5 (3.33) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter Voice Coil Ø mm (in.) | 13 (0.5) |

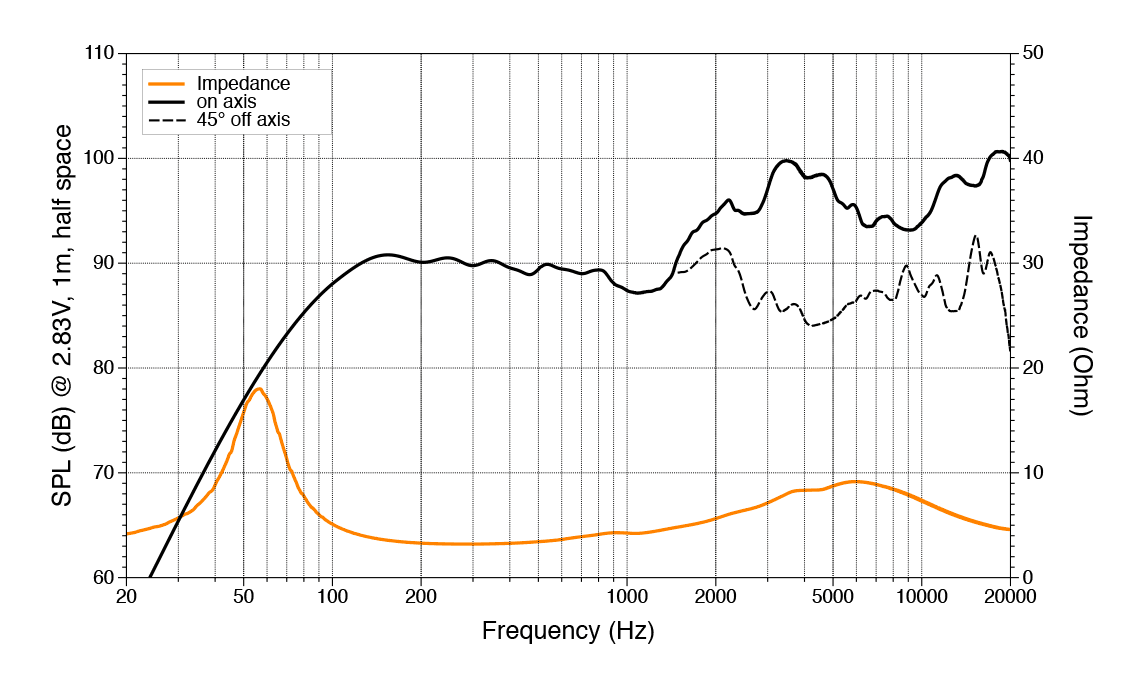

| Frequency Response Hz | 50 ÷ 23k |
| Woofer Magnet size D x d x h mm (in.) | 85 x 32 x 15 (3.35 x 1.26 x 0.59) |
| Tweeter Magnet size D x h mm (in.) | 12,9 x 2 + 11 x 1,9 (0.51 x 0.08 + 0.43 x 0.07) |
| Weight of one speaker kg (lb.) | 1,1 (2.4) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | PEI |
| Xmech mm (in.) | ±4,8 (0,19) |
Electro-acoustic Specs
| D mm | 125 |
| Re Ohm | 3,3 |
| Fs Hz | 78 |
| Le mH | 0,109 |
| Vas I | 6,52 |
| Mms g | 13,5 |
| Cms mm/N | 0,31 |
| BL T*m | 4,8 |
| Qts | 0,82 |
| Qes | 0,95 |
| Qms | 6,1 |
| Spl dB | 88 |
