HMX 8 LD / C

224 (8.8) mm (in.) | 123 (4.84) mm (in.) | Hi-end Led Coax | 200 W | 4 Ohm
The HMX 8 LD hi-performance marinet coaxial speakers with RGB LEDs lighting option, also available in the black option HMX 8-LD-C, is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The HMX tweeters feature an acoustic lens optimized for best off-axis dispersion and maximized SPL. The attractive stainless steel tweeter mesh grille provides perfect high-frequency transfer and a rock-solid protection. The RGB LED lighting circuit is integrated below the tweeter, protected by a Polypropylene transparent cover acting as light diffusion. The UV-resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.

Categories: ,
Loading...

Description

Technical Specs

Component HI-END LED COAX
Size mm (in.) 224 (8.8)
Power Handling – Continuous W 100
Power Handling – Continuous W 100
Impedance Ohm 4
Depth mm (in.) 123 (4.84)
Woofer Voice Coil Ømm (in.) 32 (1.26)
Tweeter Voice Coil Ømm (in.) 20 (0.8)
Frequency ResponseHz 45 ÷ 25k
Woofer Magnet size D x d x h mm (in.) 90 x 40 x 20 (3.54 x 1.57 x 0.79)
Tweeter Magnet size D x h mm (in.) 19,7 x 3 (0.78 x 0.12)
Weight of one speaker kg (lb.) 1,66 (3.66)
Woofer Magnet High density flux ferrite
Tweeter Magnet Neodymium
Cone Polypropylene with UV inhibitors
Dome PEI
Xmech mm (in.) ±8,5 (0.33)

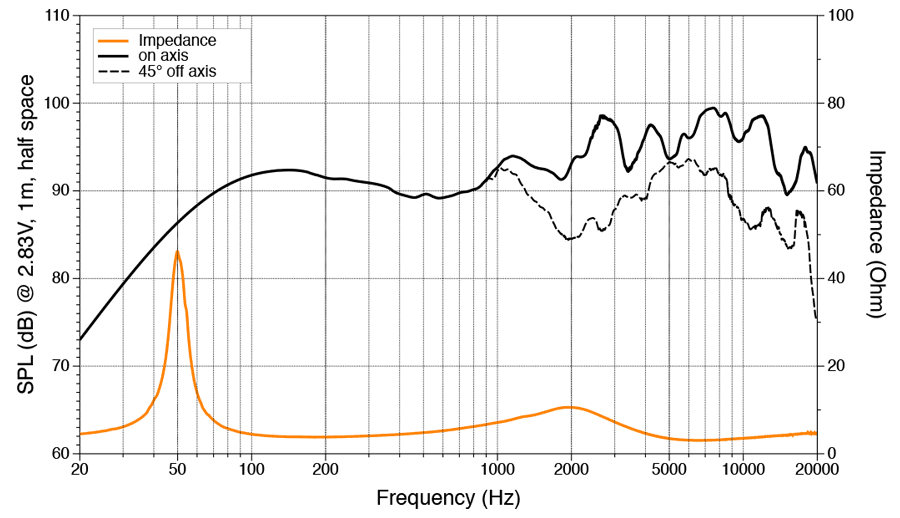

Electro-acoustic Specs

D mm 174
Re Ohm 3,1
Fs Hz 50
Le mH 0,52
Vas I 29,46
Mms g 27,3
Cms mm/N 0,37
BL T*m 6,6
Qts 0,58
Qes 0,61
Qms 11
Spl dB 91
